The 60 LED panel brings RedVance's core panel architecture into a compact format, combining dual-chip LED beads, electronic control and cooling support for beauty, home wellness and entry-level product projects.
Six engineering decisions that separate the 60 LED panel from commodity alternatives — visible in the design, measurable in the output.
Each LED position carries a dual-chip bead — red and near-infrared on a single emitter. The driver board is developed in-house, delivering constant-current control with zero flicker. This is the electrical foundation behind the panel's therapeutic output, not a cosmetic specification.
630 · 660 · 810 · 830 · 850 nm across the array. Each wavelength targets a distinct depth of tissue penetration — not a single-purpose device.
3″ TFT touchscreen, wireless remote and Bluetooth APP control — all three methods standard on every unit. No upgrade required.
Control boards are manufactured on our own SMT line in Shenzhen — not outsourced. Direct production control means consistent quality and faster iteration on OEM configurations.
Thermal management integrated into the housing design. Stable output under continuous use — critical for clinical and professional environments.
Laser-cut, CNC bent, welded and powder-coated. The build quality is consistent and repeatable — suitable for branded product programs with professional presentation requirements.
Logo, packaging, wavelength configuration and control interface reviewed per project. White-label APP available. Minimum order quantities discussed case by case for new brands.

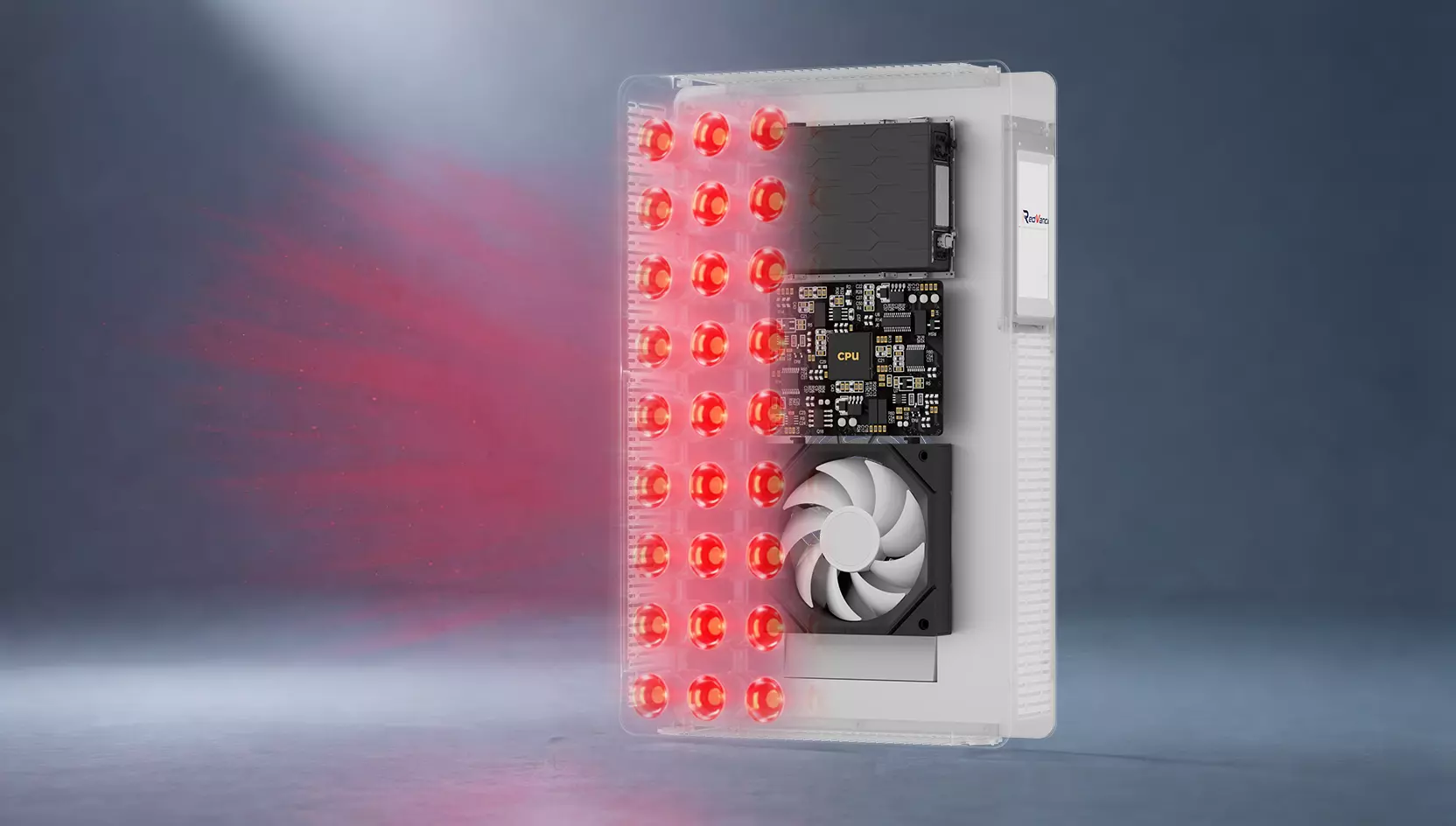

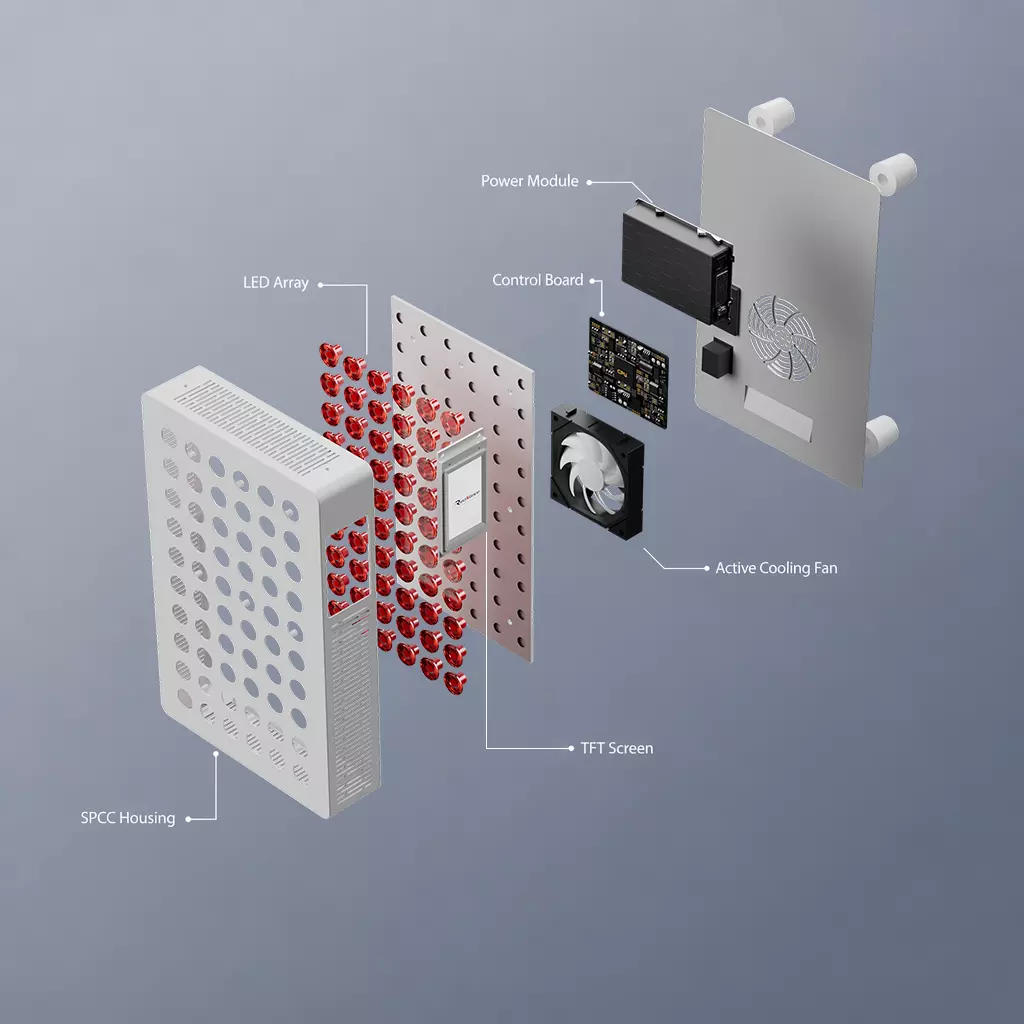

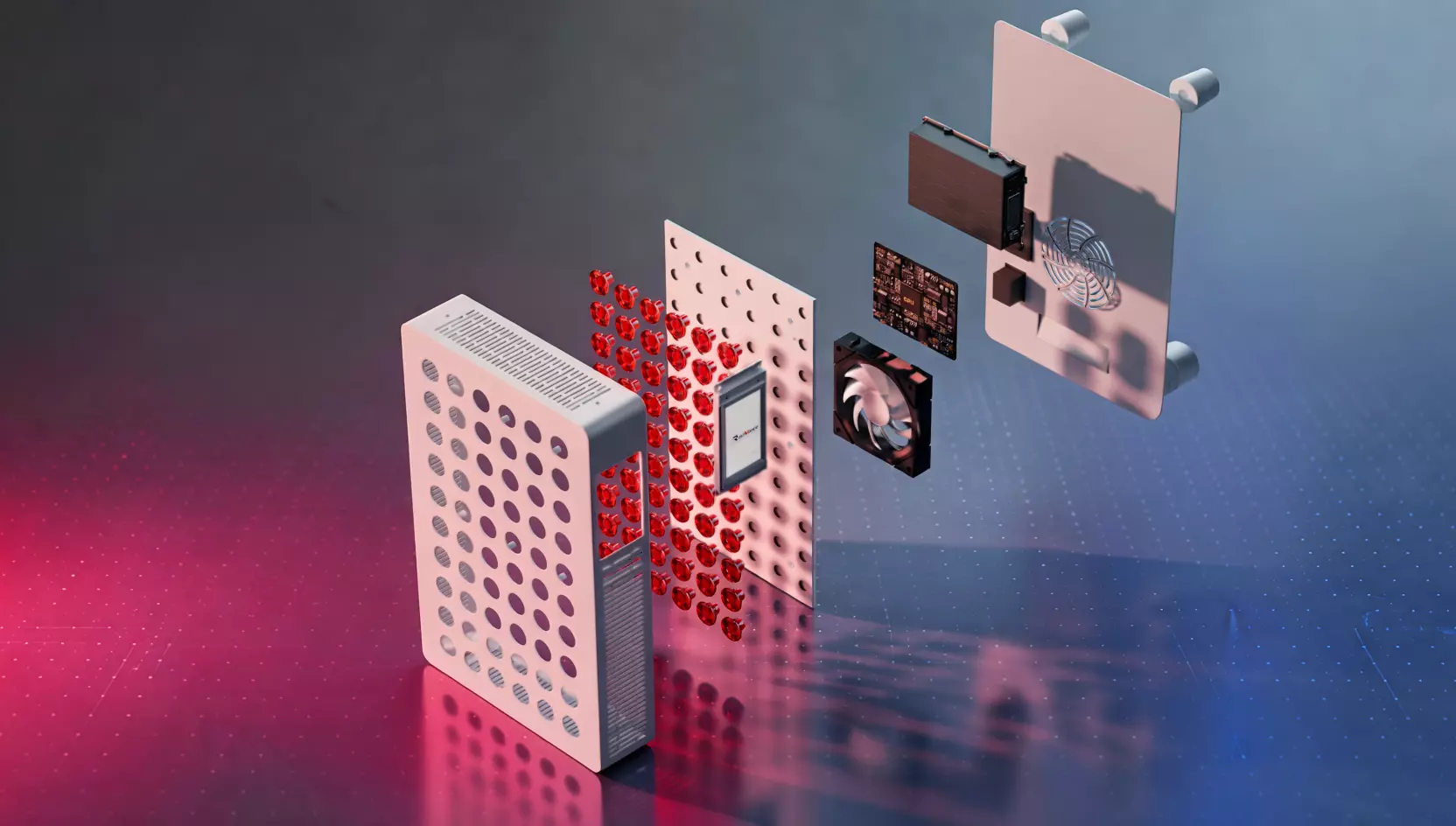

The 60 LED panel is not a collection of off-shelf components fitted into a housing. Each subsystem — LED array, driver board, cooling and enclosure — is selected and integrated to work as a coordinated whole.
60 dual-chip beads covering five wavelengths — 630, 660, 810, 830 and 850 nm. Red and near-infrared on a single emitter per position, with 30° secondary lenses for controlled beam geometry.
Constant-current LED driver developed in-house on our own SMT line. Zero-flicker output with managed dimming. The control board handles 3-in-1 input — touchscreen, remote and APP — through a single integrated circuit.
Single-fan cooling matched to the 145 W array output. Airflow path engineered into the housing profile — not an afterthought. Maintains stable LED junction temperature under continuous session use.
Steel housing formed by laser cutting, CNC bending, welding and powder coating. Dimensional accuracy holds the LED array in alignment and gives the finished product the structural rigidity required for branded product programs.
RedVance designs the 60 LED panel as a complete product — wavelength layout, irradiance output, cooling structure, control behaviour and housing engineered together. This is what makes it suitable for professional red light therapy product programs, not just consumer sale.
Every 60 LED panel ships with all three control methods as standard. No upgrade, no add-on — choose the one that fits your environment.
On-panel precision control with a full-colour display. Adjust wavelength combination, intensity, pulse frequency and session timer directly on the device — no phone or remote needed.
Full session control without moving. Designed for use during treatment — start, stop, adjust intensity and switch modes from across the room, hands-free.
Smart mode presets, custom programs and Bluetooth group control from a smartphone. The connected layer for brands building a digital wellness product experience.

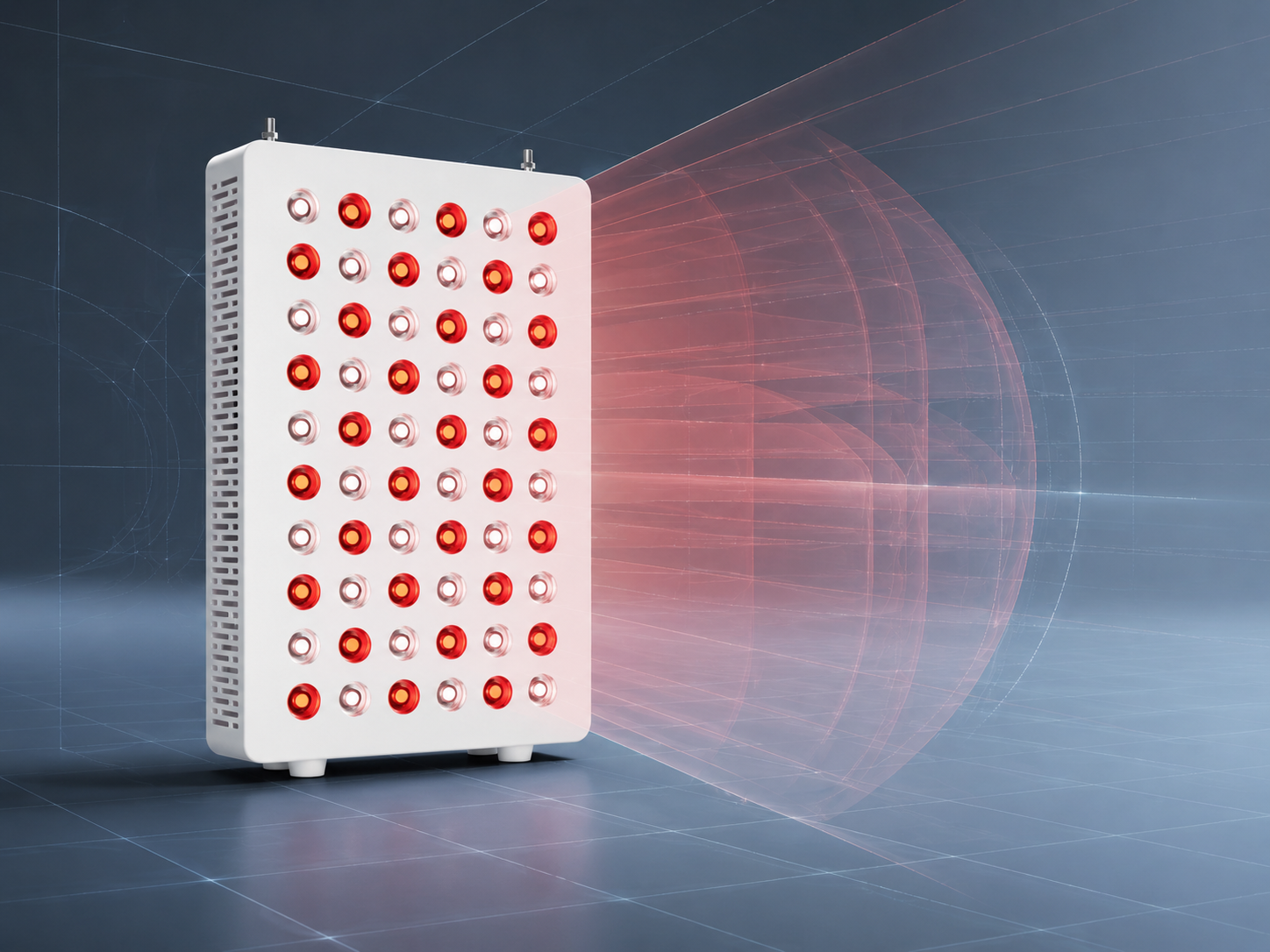

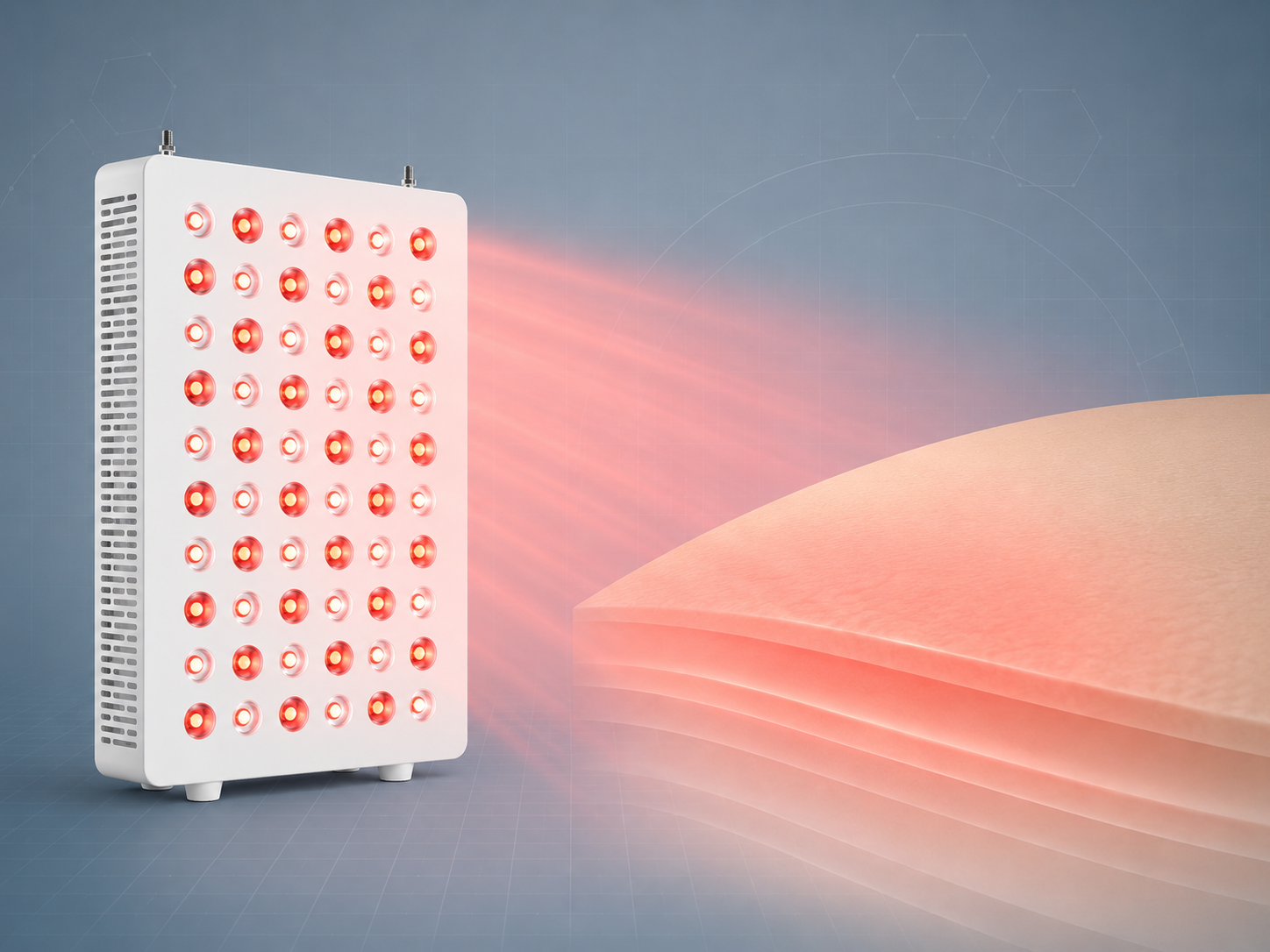

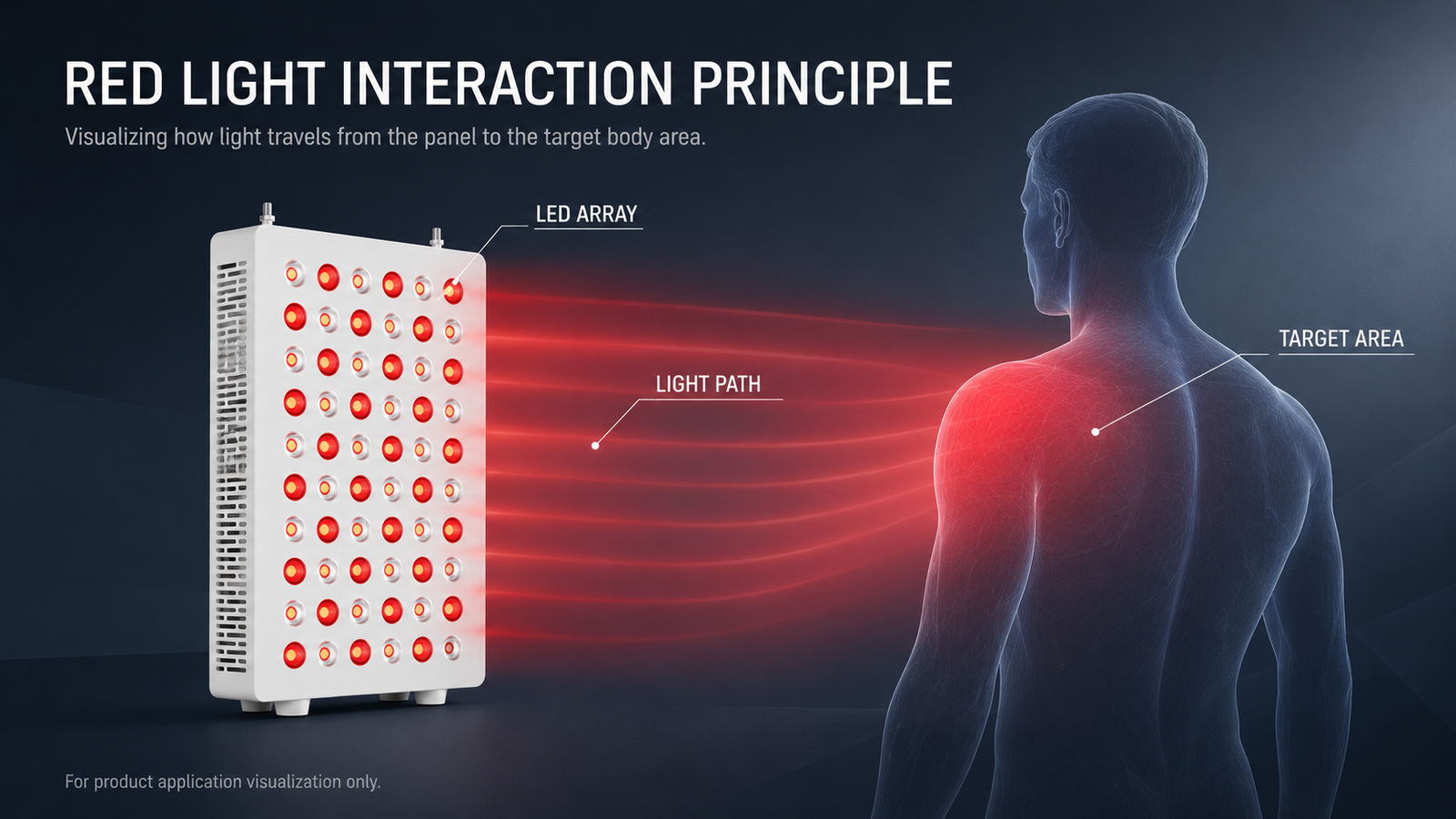

How RedVance treats wavelength selection, light absorption and coverage as product-engineering considerations — design logic, not medical guidance.
Wavelength selection and LED placement are treated as design parameters — not simply a component count.
Visualization only · Not medical guidance
Compact enough for a bedside table or work desk. Precise enough for joint recovery and clinical-adjacent use. The 60 LED panel is built for the spaces where wellness actually happens.
Confirmed product specifications for the 60 LED model. All values measured under standard test conditions.
For buyers developing beauty, home wellness or entry-level red light therapy product lines, RedVance can support the 60 LED panel with OEM / ODM configuration, private-label direction and sampling coordination.
RedVance supports B2B buyers in configuring the 60 LED panel for their product program — from label and packaging to control behaviour and pre-production sampling.
Talk to our team — we'll help match the right panel to your product program.
Share your target market, quantity range and any customization needs — our team will follow up with a clear product recommendation and next steps.
